Value Stream Mapping in 2026: A Practical Guide with Symbols, Steps and Real Examples

VSM answers three questions in one page: where does time actually go from customer request to customer receipt, which steps add value and which do not, and what should the future state look like. Use VSM at the start of any Lean or Six Sigma engagement to focus improvement work on the highest impact segment. Use it again after 6 to 12 months to measure gain and identify the next wave.

• Step 1: Pick one product family or service line, not the entire business. Scope is the top failure point.
• Step 2: Walk the gemba end to end. Talk to operators, watch actual work, time each step yourself.
• Step 3: Draw the current state on a wall with sticky notes. Capture cycle time, wait time, inventory, first pass yield.
• Step 4: Calculate total lead time and process cycle efficiency (value adding time divided by total lead time). Typical starting PCE: 2 to 15 percent.
• Step 5: Identify the 8 wastes (TIMWOODS + skills) inside the current state map.

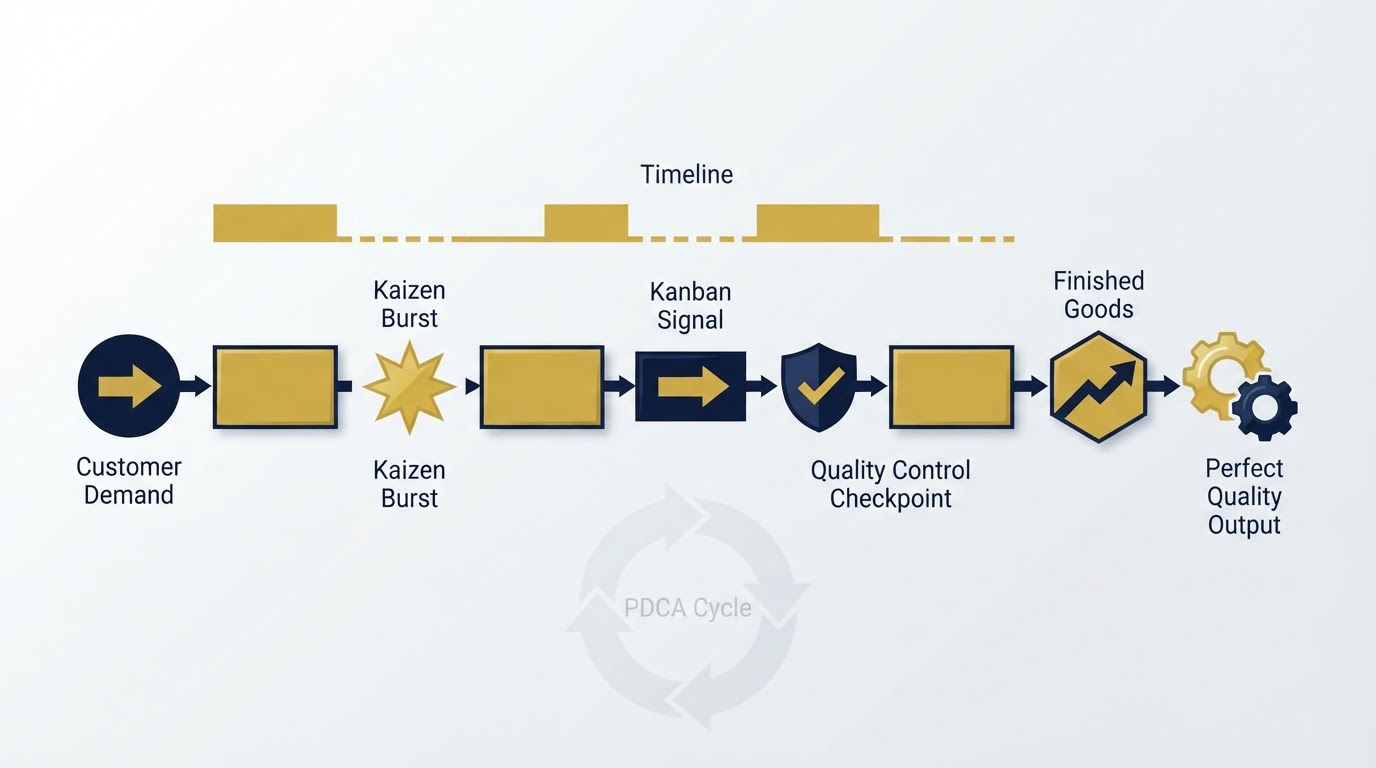

• Step 6: Draw the future state map with takt time, pull, one piece flow, load levelling and Kaizen bursts at improvement targets.
• Step 7: Publish a Kaizen implementation plan with owners, dates and metrics. Review weekly for the next 12 weeks.

A tier 1 Indian bank mapped its home loan approval process from application to disbursement. Current state lead time was 21 days with 3.4 hours of value adding work. PCE was 1.8 percent. Wait time was concentrated in credit verification (5.5 days), legal document review (4.2 days) and technical valuation (3.8 days). Future state introduced parallel triggering of verification, legal and valuation the moment application is filed, plus a supermarket for standardised low ticket loans. Lead time dropped to 6.5 days with PCE up to 5.4 percent. Disbursement volume rose 34 percent with no headcount increase.

A B2B SaaS team mapped its code commit to production deployment value stream. Current state: 6.5 days total lead time with 42 minutes of value adding work. Waste concentrated in manual QA sign off (3.2 days), waiting for release windows (1.8 days) and manual database migration (0.7 days). Future state: automated regression tests replaced 80 percent of manual QA, trunk based development with feature flags removed release windows, and Liquibase automated migrations. Lead time dropped to 4.5 hours with deployment frequency up from weekly to 12 per day.

• Drawing the current state from memory instead of walking the process.
• Mapping too broadly (whole business) instead of one product family.
• Omitting information flow (only drawing material flow).
• Skipping the timeline at the bottom of the map.
• Jumping to future state without agreeing PCE target with the process owner.
• Producing a beautiful poster with no implementation plan or owner list.
